Product Details
＋

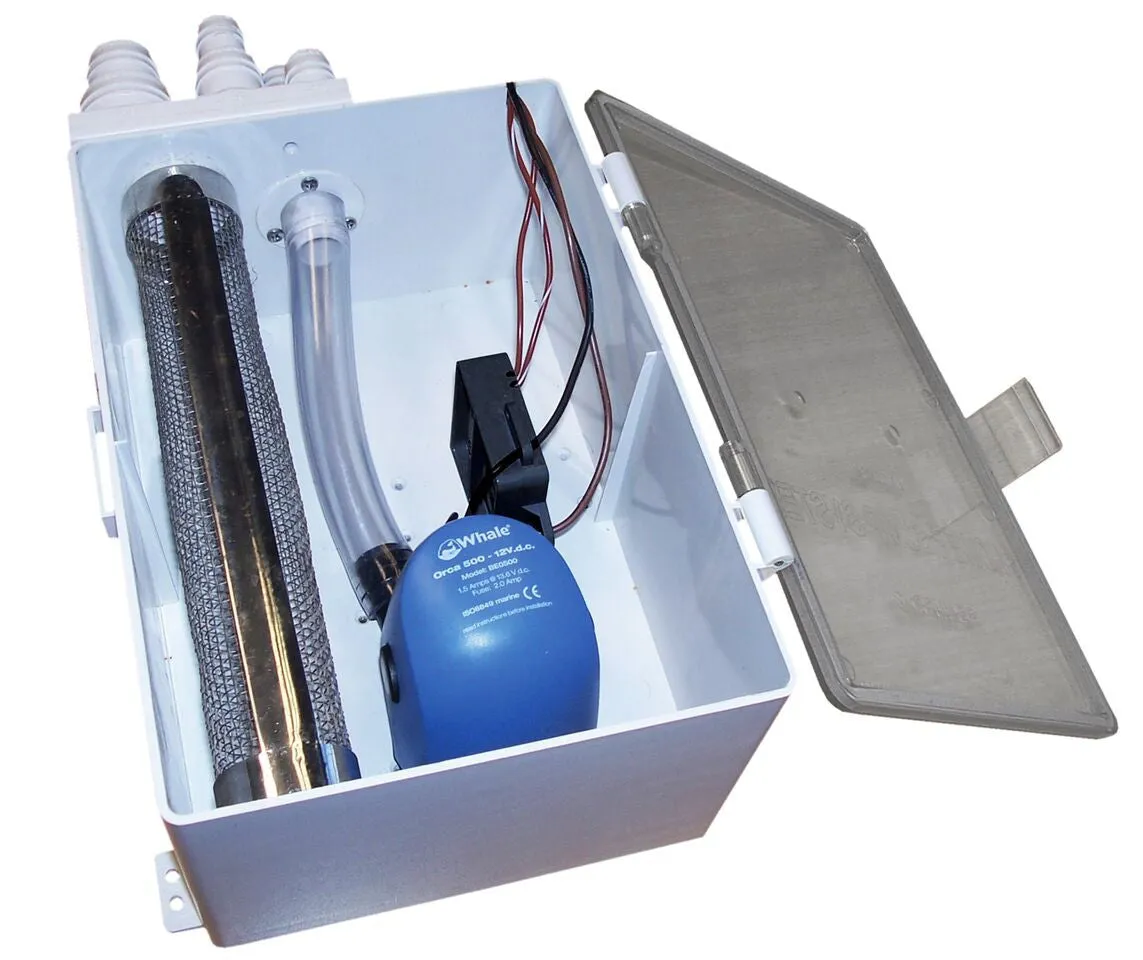

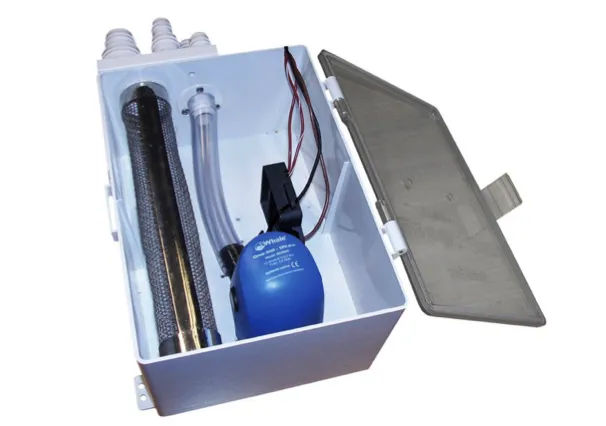

The Whale Shower Waste System is designed to collect waste water from shower trays and sinks then automatically trigger the electric field sensor to activate the pump. The complete system includes a sump box, compact and powerful Orca Pump, automatic Electric Field Sensor and robust stainless steel filter all pre-assembled to allow for quick and easy installation.
The Whale Shower Sump System allows for multiple inlet and outlet connections ranging from ¾” (19mm) - 1 ½” (38mm) for inlet connections and ¾” (19mm) or 1” (25mm) for outlet connections, therefore adapting to your existing plumbing. It is available in 500 GPH and 950 GPH capacities.
Key Features
- Plug N Play - Pre-assembled kit
- Easy Maintenance - Clear, hinged lid and removable stainless mesh strainer for easy inspection and maintenance
- Easy Installation - Multiple inlet port sizes for easy connection to existing plumbing
- Reliable Operation - Electronic Sensor Switch
- Consistent flow - Built-in non-return valve prevents cycling
Techy Stuff
- Flow Rate 1m Head : 32 litres per min model : 16 litres
- Flow Rate 1m Head : 59 litres per min model : 38 litres
- Recommended Fuse Rating : 32 litres 2 amp, 59 litres 5 amp
- Weight : 32 litres : 1.25 kg, 59 litres : 1.42 kg

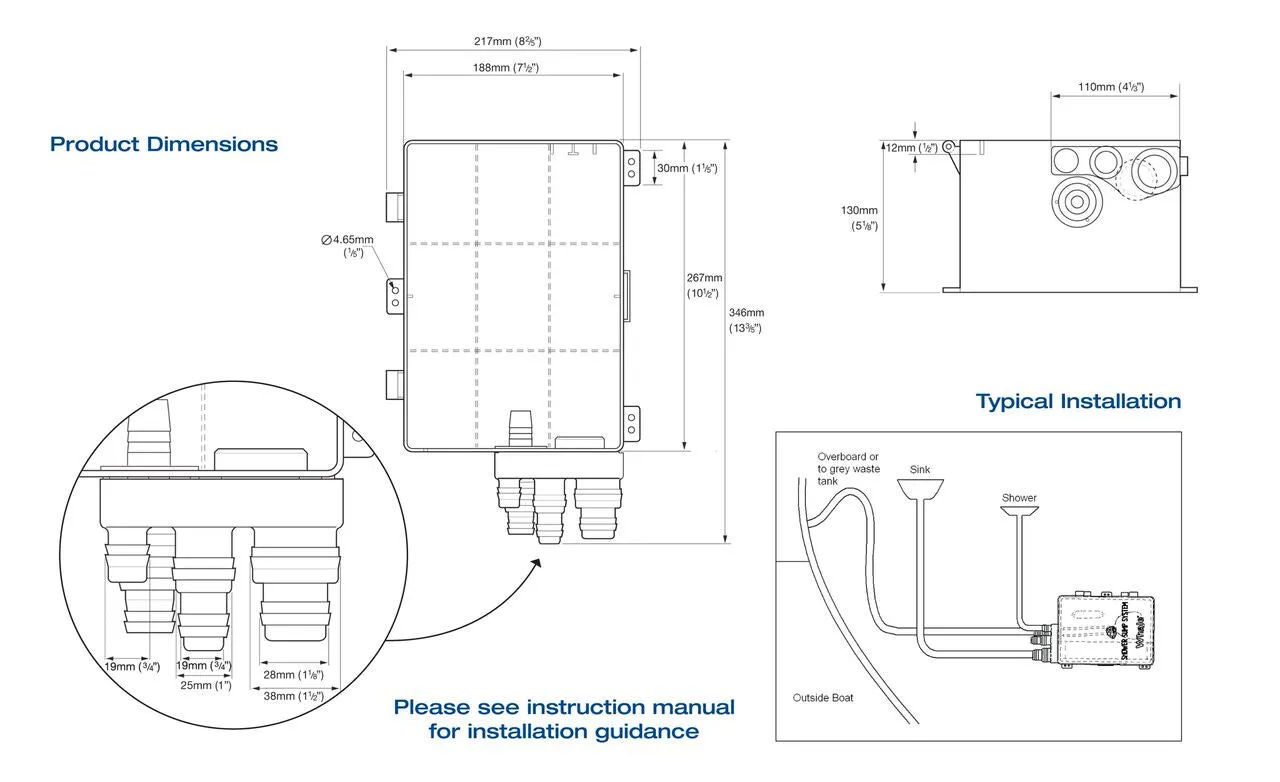

- Inlet Ports : 3/4" ( 19mm ), 1" ( 25mm ), 1 1/8" ( 28mm ), 1 1/2" ( 38mm Outlet Ports : 3/4" ( 19mm ), 1" ( 38mm )
Models
- Shower Sump System 32 litres per min 12V
- Shower Sump System 59 litres per min 12V
