Product Details
＋

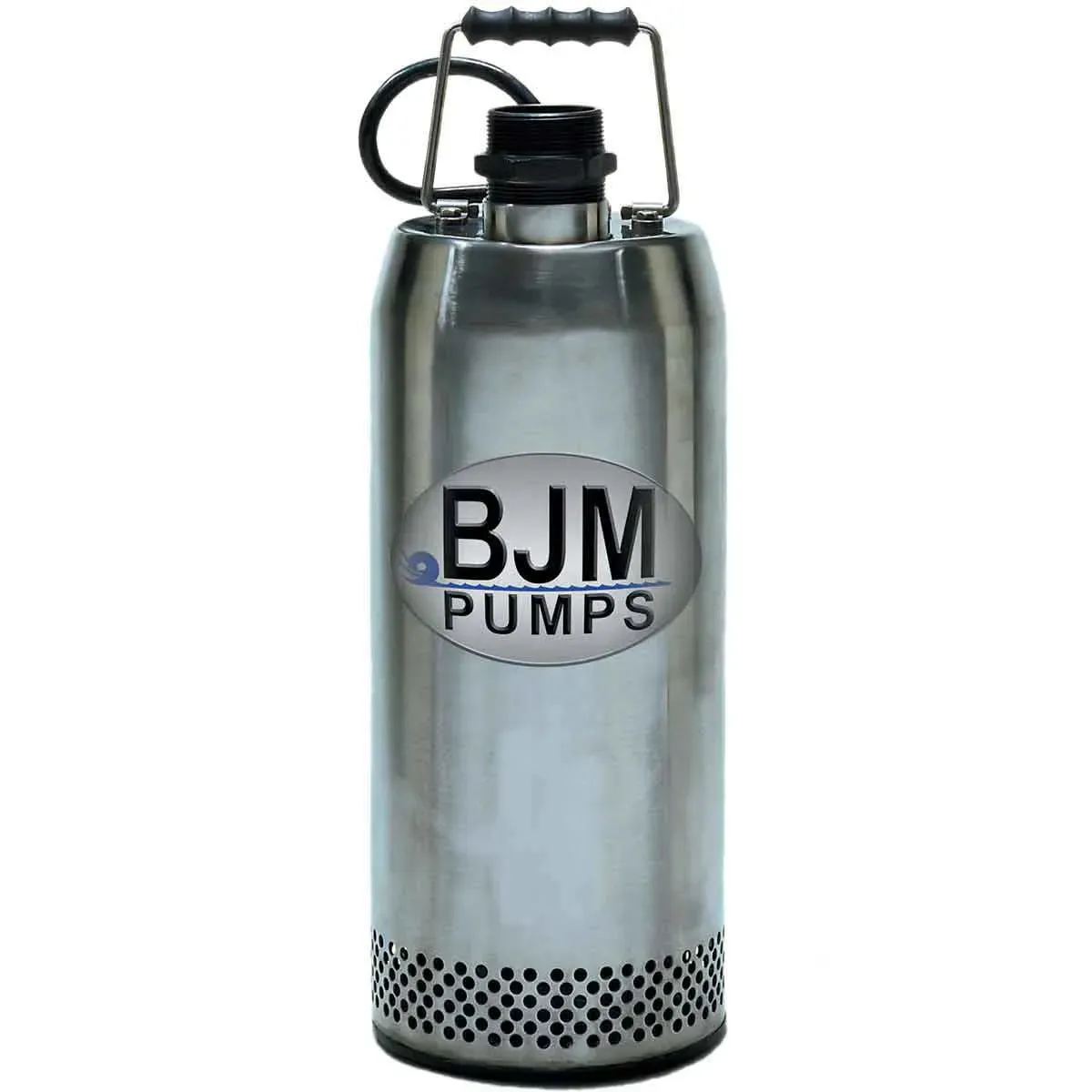

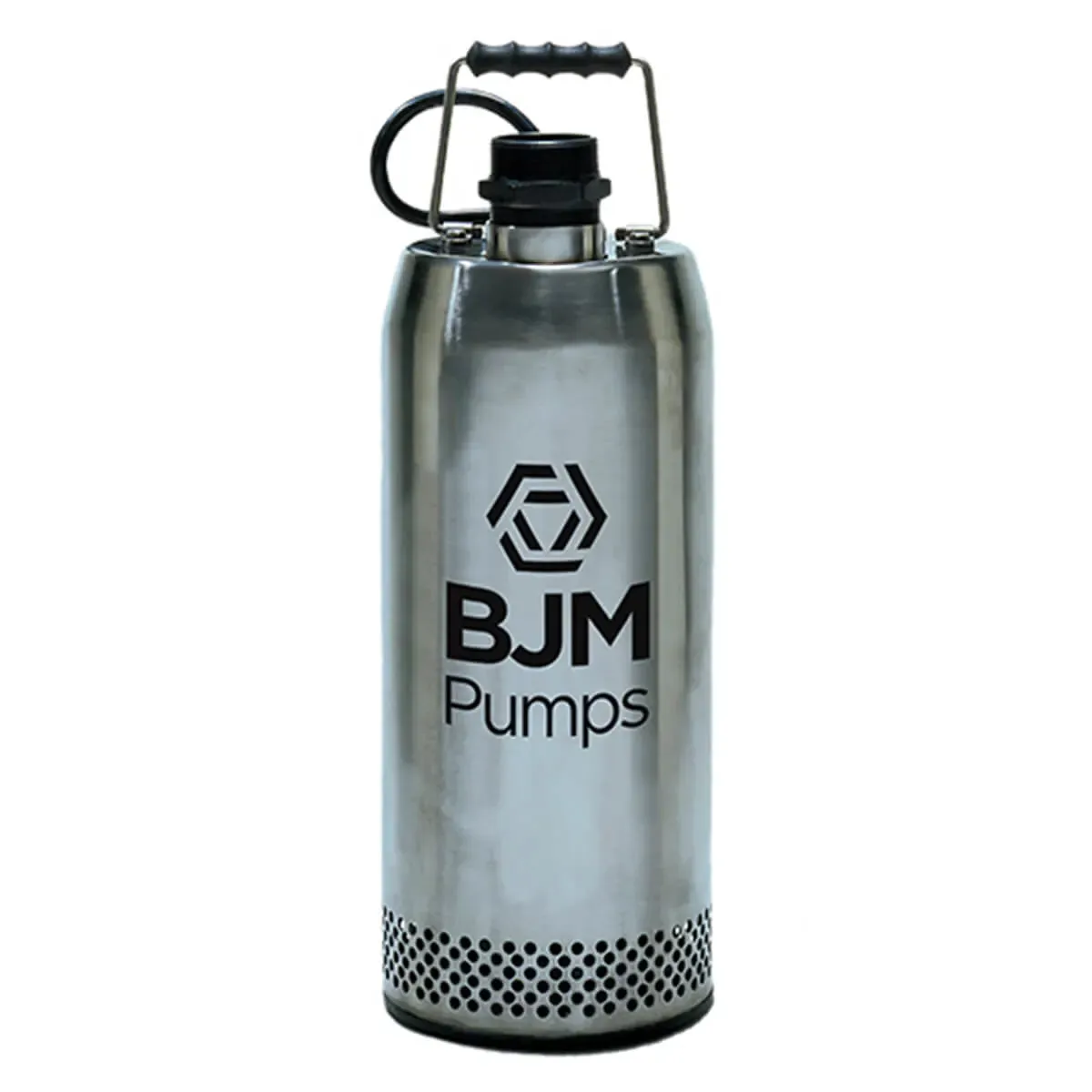

BJM R1520-230 3" Submersible Dewatering Pump
BJM pumps offer premium performance and efficiency for a variety of applications.
Features
- The Big Bullet® pumps (2HP) are ideal for dewatering construction sites, mines, circulating fountain water, or for all around use in industrial plants and utilities
- 304SS motor housing; superior to pumps with aluminum housings that wear out pumping sandy water
- Hardened cast iron impellers and volutes; superior to pumps with plastic impellers that erode or plastic pump bodies that crack from rough handling
- 2 HP, 230V, single phase, 14 Full Load Amp
| BJM R1520 Pump Specifications | |
| MAX. FLOW | 151 gpm |
| MAX. HEAD | 59 ft |
| PUMP TYPE | Elec. Submersible, Top Discharge, Dewatering |
| STRAINER OPENING | 1/4 IN |
| DISCHARGE CONNECTION | 3" NPT-M |
| SHIPPING WEIGHT:lbs | 85 lbs |
| MECHANICAL SEAL UPPER | Crb / Cer |
| MECHANICAL SEAL LOWER | Sic / Sic |
| MOTOR CASING | 304 SS |
| PUMP VOLUTE | Cast Iron |
| IMPELLER- MULTI VANE | Cast Iron |
| STRAINER | 304 SS |
| LIPSEAL & O-RINGS | Buna-N |
| ROTOR SHAFT | 304 SS |
| EXTERNAL HARDWARE | 304 SS |
| QTY. OIL IN SEAL CHAMBER | 2.7 U.S. fl. oz. |
| Motor Data | |
| MOTOR RATING | 2HP |
| MOTOR RPM | 3450 Rpm |
| MOTOR INSULATION CLASS | F |
| MOTOR SERVICE FACTOR | 1.1 |
| VOLTAGE | 230V, 1ph-60Hz |
| CURRENT Full Load Amps. | 14 Amps |
| MOTOR PROTECTION | Thermal & Amp O.L. |
| POWER CORD GAGE & LENGTH | 14/3; 50 ft |
| MAXIMUM LIQUID TEMPERATURE | 104° F |
