Description

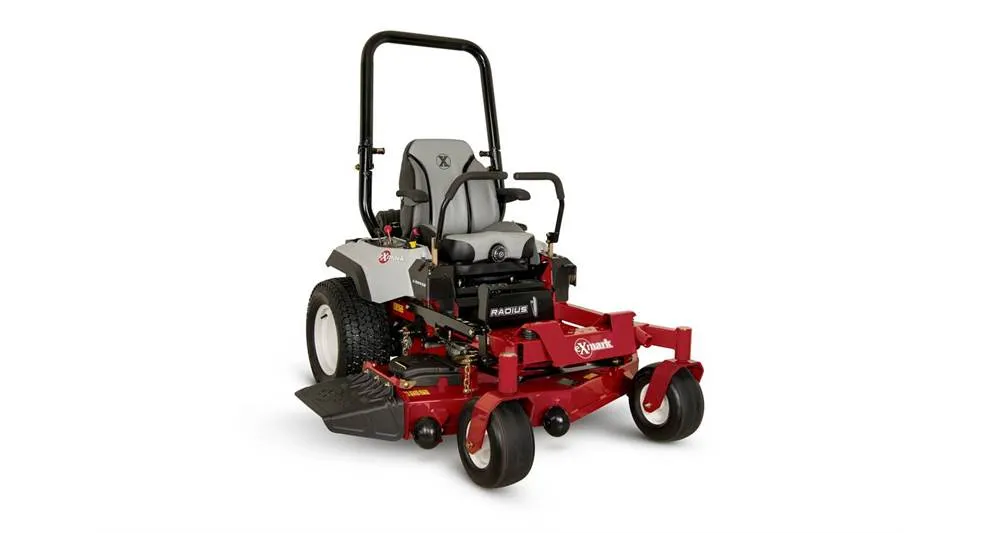

Exmark Radius X-Series zero-turn mowers deliver the cut quality and durability professionals demand with a host of new features and innovations. Powered by Kawasaki FX engines, with Hydro-Gear integrated transmissions and up to 10 mph fwd. ground speed, Radius X-Series improves productivity, but a full-suspension operator seat with operator preference dial and elastometric vibration control (EVC) means maximum comfort. Available with 48-, 52- and 60-inch UltraCut mower decks.

Features

UltraCut Deck Technology: Exmark's exclusive UltraCut decks are featured on Radius models in a choice of 44- to 60-inch cut widths. Every UltraCut cutting deck features Exmark's exclusive maintenance-free, sealed-bearing spindle assemblies for increased durability and reduced downtime, combined with zero maintenance.
Heavy Duty Unibody Frame: Fully-welded using 2-inch by 3-inch frame tubes, the Radius frame design places major components including the engine, hydro drive and fuel tank lower, with better mass centralization. This gives the Radius increased hillside traction and stability, with heightened maneuverability.
Quick Adjustable Rollover Protection System (ROPS): Uses an easy-to-fold up-and-down design built from round tubes and provides flexibility for placement of accessories.
Fuel Gauge Window: Easy-to-use, accurate sight window-type fuel gauge is standard on all Radius models.
Height of Cut Made Easy: The patented height of cut system is a user friendly tool developed for operators to quickly and accurately select the height of cut.
Comfort Stepped Up: X-Series machines step up to Exmark's full-suspension seating system, with three inches of adjustable vertical suspension combined with patented EVC stretch fabric to provide maximum operator isolation from bumps and vibration.
Service Made Easy: A tools-free removable foot rest eases access to the top-side of the cutting deck, and tool-less removable belt shields provide easier access to belts and spindles. A welded jack receiver on the Radius frame allows for easier service to the bottom-side of the deck when combined with the optional jack.

Equipment

Blade Spindles: No maintenance, sealed and non-greasable spindles; 7.75 in.-diameter cutter housing with 25mm(.98 in.)diameter spindle shaft and splined blade driver.
Drive Tires: 24 x 9.5-12 K500
Tractor Frame: Unibody, welded, heavy-duty 2 in. X 3 in. rectangular tubular steel.
Steering Control: Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Front Caster Tires: 13 x 6.5-6, smooth tread, pneumatic. Sealed Taper Roller Bearings
Parking Brake: Lever-actuated pawl brake.
Seat: Deluxe suspension (adjustable spring suspension) seat with high back, molded foam flip-up armrests, and integral safety switch
Electrical: 12-volt battery with 15-amp alternator.
Standard Features: Engine hour meter, cup holder, tow hitch and jack receiver

Power Components

Engine Brand: Kawasaki
Engine Model: FX691V
Engine Displacement: 726
Engine Series: V-Twin
Fuel System: Carbureted
Engine Speed: 3,700 rpm
Air Filter: Cyclonic Air Cleaner
Fuel Type: Gas Carbureted
Fuel Capacity: 7-gallon (26.5-L) single fuel tank with single fill location.
Fuel Indicator: Translucent Visual
Drive: Hydro-Drive
Drive Description: Dual Hydro Gear ZT3400, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.
Engine HP: 22 hp
Speed: Infinitely variable speed selection from 0-10.0 mph (16.1 kmph) forward, 0-6.0 mph (9.7kmph) reverse.
Carb Compliant: No
Deck Lift: Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS: 2-post foldable ROPS standard with seat belt and latch.
PTO Engagement: MagStop electromagnetic 125-ft-lb clutch
Drive Wheel Release: Allows unit movement without engine running.
Casters: .375 in. thick caster yoke arms
Engine Spec: _S25

Decks

Width / Cutting Deck: 52 in.
Deck Style: Floating Deck
Deck Style Description: Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Deck Construction: 10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.
Blade Tip Speed: Approximately 18,500 fpm.
Cutting Heights: 1.5 in. (3.8 cm) to 5.0 in. (12.7 cm) in 0.25 in. (.6 cm) increments, adjustable from operator's seat.
Blades: 3 Blades at 18.00 in. Length

Dimensions

Width: 64.6 in. (164.1 cm)
Length: 81.7 in. (207.5 cm)
Height: 70.4 in. (178.8 cm)
Curb Weight: 957

Radius X-Series Accessories

Micro-Mulch System: The aerodynamically designed deck, baffles and blades create airflow patterns that circulate leaves and grass for repeated cuttings and even dispersal deep into the turf. Mulching baffles also keep the underside clean, which reduces grass buildup and clumping.
Operator Controlled Discharge (Hand): The infinitely adjustable blocker door opens and closes, allowing the operator to quickly control discharge when mowing around parked cars and windows. Easily installs and removes without tools.
12-Volt Power Adapter: Conveniently located for ease of use. Great for phone chargers or any other operator comfort accessory. (Phone not included.)
3-Bushel Bagger Adapter: Adapter required for GC3602 3-Bushel Bagger (48" and 52" models).
5-Gallon Bucket: Carry a 5-gallon bucket on your mower to pick up unwanted debris while mowing. Mount not included.
Equipment Cover: Protect your zero-turn mower from the elements with this sturdy, waterproof cover. It's constructed from tough 600-denier polyester, making it abrasion- and tear- resistant. Its elastic opening provides a secure, snug fit.
Seat Cover- Suspension 20" Back: Protect your new seat or make your old one look new. Fabric coated for maximum water resistance and repellency. Cushioned for extra comfort. Elastic cord in bottom hem for custom fit. (Fits suspension seat.)
Jack: Easy to use, 15" stroke Bulldog jack, gives you plenty of room to change blades or perform routine deck cleaning (jack mount receiver not included).
Engine Maintenance Kit - Kawasaki FX: Contains everything a do-it-yourselfer needs to keep their Exmark running like new. Includes Air Inner & Outer Element Filters, Oil Filter, Fuel Filter, Spark Plugs, Fuel Treatment and Engine Oil.
Extended Drive Lever Kit:
Front Bucket Mount & 5-Gallon Bucket: Easily attach a 5-gallon bucket to your mower to pick up unwanted debris while mowing
Bucket Mount Kit: Easily attach a 5-gallon bucket to your mower to pick up unwanted debris while mowing. Bucket not included.
Hydro Maintenance Kit: Kit includes: 5 Bottles Exmark Premium Hydraulic Oil and 2 Hydro Filters
Light Kit - LED: Better and brighter than ever, this quick-install light kit keeps your productivity going into the night. Low profile, and impact-resistant, this ROPS mounted accessory emits powerful light without the use of significant amperage capacity.
Sun Shade (ROPS): Easily mounts to Rollover Protection System (ROPS). Made of heavy-duty, water- repellent canvas for maximum durability. Easily removable for transport. Fits all Lazer Z and Pioneer models. (Does not fit Quest.) (Replaces 116-0513)
Trash Container: Conveniently located within easy reach of the operator, this trash container features a 2.5-gallon capacity and durable, easy-to-clean mesh receptacle. See dealer for fit- up information.
Semi-Pneumatic Tire Assembly: Customize your ride with just the right caster tire.
3-Bushel Bagger: Lightweight and easy to attach, this 3-bushel grass catcher fits all Exmark Lazer Z, Pioneer, Radius, Vantage* and wide-area walk-behinds. (*Not available for Vantage Propane models.) 116-7042 spacer adapter required for 36" deck models.
Turf Striping Kit: Customize your property with consistent and professional striping using a smooth operating roller design. Installs quickly, using existing mounting points, and easily adjusts for varying cutting height settings. Does not affect your ability to get up and over curbs.
Completing Kit - Powered: Completing Kit - Powered
UltraVac Completing Kit: UltraVac Completing Kit
2-Bag Collection System - Powered:
UltraVac: 2-bagger commercial-grade powered collection system. Switch between bag discharge and side discharge with quick-attach. Less clogging with larger-diamer tubes. Compact design minimizes trailer space for easy maneuverability. Dust reduction with sealed hoods.
