Description

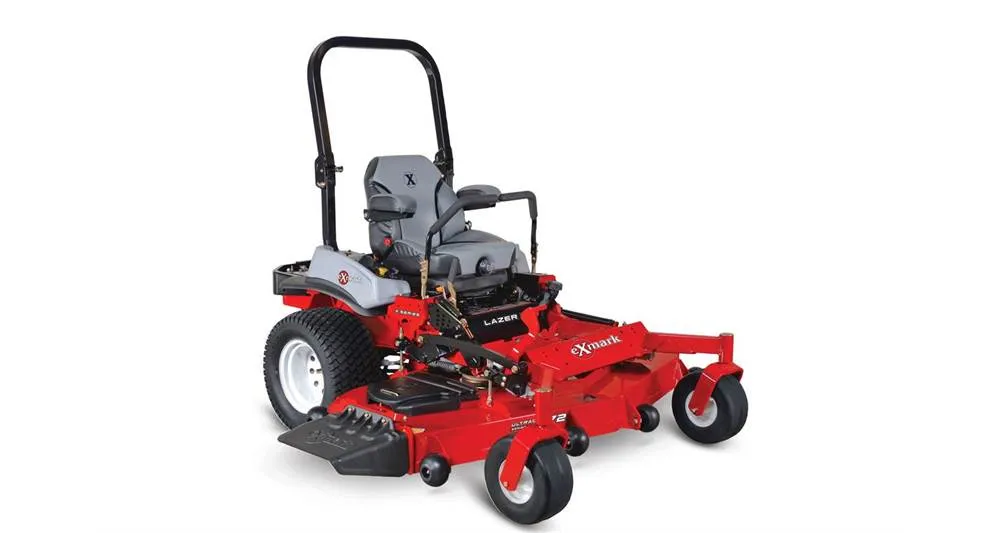

With our top-rated Lazer Z X-Series, there are plenty of boxes to check. For starters, it's now available as a 96-inch gas powered zero-turn mower. You can choose from five rugged, commercial-grade engines, including high efficiency Electronic Fuel Injection (EFI) options. Which also features our exclusive EGov and RED technology which can boosts fuel efficiency up to 41%. The X-Series also features our UltraCut™ Series 6 deck in 52-, 60-, 72-, and 96-inch cutting widths. Whatever combination you choose, operators will ride in unrivaled comfort thanks to our unique seating system. There's even a standard 12-volt adapter to keep devices charged. So, if you're looking for our top-of-the-line mower, the Lazer Z X-Series should be at the top of your list.

Features

UltraCut Series 6 Deck: This full-floating deck uses double-row bearings with a splined blade driver to stop bolt tightening on impacts. And, our patented bearing design on idler arm pivots only needs annual service.
Patented RED Technology: Enabling communication and response between key systems on your mower with defined operation modes, system monitoring and clutch saver features.
A New Level of Comfort: Comfort increases productivity. That's why we designed a new, ergonomically advanced seat system featuring our exclusive Iso-Mount Seat Isolation System.
Productivity: Higher ground speeds with 16cc drive system and more power with larger engine displacements for improved productivity.
Rear Discharge Deck: Available in 60 and 72 inch cutting widths, the rear discharge deck offers increased clipping discharge control, reduced noise, and the ability to trim on both sides of the cutting deck while keeping the operator clean.
Tool-less Belt Removal: Deck and hydro belt can be installed without using any tools.

Equipment

Blade Spindles: No maintenance, sealed and non-greasable spindles; 7.75 in.-diameter cutter housing with 30mm (1.18 in.)diameter spindle shaft and splined blade driver.
Drive Tires: 24 x 12.0-12, 4-ply Turf Master®
Tractor Frame: Unibody, welded, heavy-duty 1.5 in. x 3 in. tubular steel.
Steering Control: Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
Front Caster Tires: 13 x 6.5-6 smooth tread, semi-pneumatic tires.
Parking Brake: Lever-actuated disc brake.
Seat: Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
Electrical: 12-volt battery with 15-amp alternator.
Standard Features: Engine hour meter and cup holder

Power Components

Engine Brand: Kawasaki
Engine Model: FX921V
Engine Displacement: 999
Engine Series: V-Twin
Engine Speed: 3,750 RPM
Air Filter: Heavy-duty canister air filtration system
Fuel Type: Gas Carbureted
Fuel Capacity: 12-gallon (45.4-L), single fuel tank with single fill location.
Fuel Indicator: Yes - electronic Sender
Drive: Hydro-Drive
Drive Description: Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, shock valve, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 16 cc pumps and 17.1 cubic inch motors.
Engine HP: 31 hp
Speed: Infinitely variable speed selection from 0-11.5 mph (18.5 kmph) forward, 0-7.0 mph (11.3 kmph) reverse
Carb Compliant: No
Deck Lift: Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS: 2-post foldable ROPS standard with seat belt and latch.
PTO Engagement: MagStop Electromagnetic 250-ft-lb clutch with spot brake
Drive Wheel Release: Allows unit movement without engine running.
Casters: .50 in. thick caster yoke arms.
Engine Spec: _S04

Decks

Width / Cutting Deck: 60 in.
Deck Style: Floating Deck
Deck Style Description: Full-floating UltraCut Series 6 with heavy-duty spindle. Side discharge standard with the option to bag or mulch.
Deck Construction: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.
Blade Tip Speed: Approximately 18,500 fpm.
Cutting Heights: 1.0 in. (2.5 cm) to 5.5 in. (11.8 cm) in 0.25 in. (0.64 cm) increments adjustable from operator's seat.
Blades: 3 Blades at 20.50 in. Length

Dimensions

Width: 72.8 in. (184.9 cm)
Length: 83.1 in. (211.1 cm)
Height: 70.5 in. (179.1 cm)
Curb Weight: 1246

Lazer Z X-Series Accessories

Hitch Kit: Enables owners to add attachments to their mowers to increase productivity by towing light implements and yard carts.
Light Kit (not compatible with TC26): Light Kit
Micro-Mulch System: The aerodynamically designed deck, baffles and blades create airflow patterns that circulate leaves and grass for repeated cuttings and even dispersal deep into the turf. Mulching baffles also keep the underside clean, which reduces grass buildup and clumping.
Operator Controlled Discharge (Foot): The infinitely adjustable blocker door opens and closes by using the convenient foot pedal, allowing the operator to quickly control discharge when mowing around parked cars and windows. Easily installs and removes without tools.
12-Volt Power Port: 12-Volt Power Port
Equipment Cover: Protect your zero-turn mower from the elements with this sturdy, waterproof cover. It's constructed from tough 600-denier polyester, making it abrasion- and tear- resistant. Its elastic opening provides a secure, snug fit.
Extended Drive Lever Kit: Improve your elbow room while you operate with extended drive levers.
Harness Add-On Accessory Kit: Take the hassle out of dual accessory fit up with this add-on harness.
Anti-Scalp Roller Kit: Protect the trim side of your Lazer 60" UltraCut deck with this Anti-Scalp Roller kit. Fits Lazer 604 decks model year 2009 and above.
Hydro Maintenance Kit: Kit includes: 1 gallon jug of Exmark® Premium Hydraulic Oil and 2 Hydro Filters (Replaces 116-3270)
Jack: Easy to use, 15" stroke Bulldog jack, gives you plenty of room to change blades or perform routine deck cleaning (jack mount receiver not included).
Trash Container (Not compatible with 135-7320): Conveniently located within easy reach of the operator, this trash container features a 2.5-gallon capacity and durable, easy-to-clean mesh receptacle. See dealer for fit- up information.
Jack Mount Receiver: Safely access the underside of your zero-turn mower's deck. Used with Exmark's Bulldog jack (p/n 127-6666 sold separately) attaches for smooth lift without hassle or strain, thanks to its comfortable, ergonomic design. Built for years of reliability.
Sun Shade (ROPS): Easily mounts to Rollover Protection System (ROPS). Made of heavy-duty, water- repellent canvas for maximum durability. Easily removable for transport. Fits all Lazer Z and Pioneer models. (Does not fit Quest.) (Replaces 116-0513)
Power Deck Lift: Change your deck from any cutting height to the transport position quickly and easily, with a convenient foot pedal actuator switch that lets you keep your hands safely on the drive levers. Created specifically for your 48-72" cutting deck Lazer Z, its electronic motor features Exmark's signature durability and a low-profile design that leaves plenty of trailer space.
Floor Mat: Keep your Lazer looking its best by protecting the floorpan from scuffs and dirt. Fits all Lazer models (model year 2009 and higher).
Tractus Tire: Tractus Tire
3-Bushel Bagger: Lightweight and easy to attach, this 3-bushel grass catcher fits all Exmark Lazer Z, Pioneer, Radius, Vantage* and wide-area walk-behinds. (*Not available for Vantage Propane models.) 116-7042 spacer adapter required for 36" deck models.
Air Ride Suspension Seat: Designed to fit all Lazer Z models, the new air ride seat gives you the best comfort available. Sophisticated air suspension technology virtually eliminates any bumps, jarring or vibration your property delivers.
UltraVac Completing Kit: KIT, UV DRIVE 606
Turf Striping Kit: Fits 48", 52" and 60" models. Customize your property with consistent and professional striping using a smooth operating roller design. Installs quickly, using existing mounting points, and easily adjusts for varying cutting height settings. Does not affect your ability to get up and over curbs.
UltraVac 3-Bag Collection System: The UltraVac S-Series enables you to switch between bagging and side discharge with quick-attach capability. Avoid clogging with larger diameter tubes. Compact design minimizes trailer space for easy maneuverability. Sealed hood reduces dust.
UltraVac Quick Dump Collection System: The UltraVac X-Series discharges grass quickly with one simple motion of the release lever. With commercial-grade steel and polyethylene hopper Get the job done efficiently with rear-discharge door, and 11 bushel capacity.
