Description

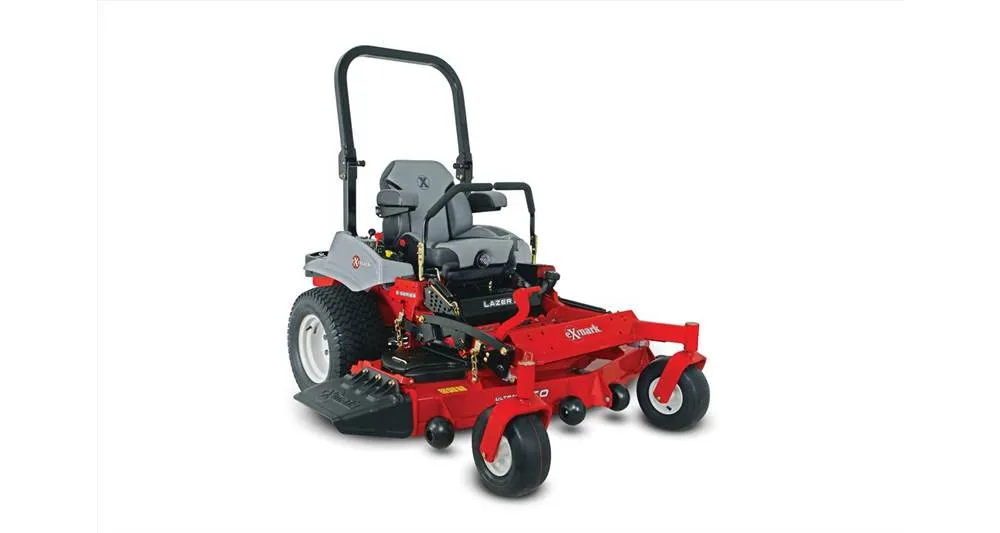

The perfect choice for professional landscape contractors who want the innovative engineering and commercial-grade quality of a Lazer Z zero turn riding mower, but in a value package. It features the same welded, heavy-duty, 1.5"x 3" tubular steel unibody frame found throughout our Lazer Z models. You can also choose from two rugged Kawasaki® V-Twin engines or a Kohler® Command™ EFI engine matched to a full-floating, UltraCut™ Series 4 cutting deck, in 48, 52, 60 or 72 inch widths. A digital operator diagnostic module simplifies system monitoring and troubleshooting, while the fuel gauge uses ultrasonic waves to provide a more accurate reading. Comes equipped with a full-suspension seat that enhances operator comfort.

Features

Hydro Drive, Simplified: Our hydro drive system has no hoses to leak and just one easy-to-change belt. Only simple, annual maintenance is required. It also lowers the center of gravity for improved handling.
Unibody Frame: Our one-piece body frame is a classic case of “less is more." Because, fewer parts equal more strength. And, more durability. So, in the interest of accuracy, the Lazer Z's unibody frame is actually a case of “less is way more."
On-Board Diagnostics: Check vital functions at a glance on the digital screen. An electronic fuel gauge with low fuel warning on all Lazer Z units, battery voltage warning, hour meter and OPC safety switch monitoring make troubleshooting easy.
Less Time At The Pump: Gas-powered E-Series models have a single 8-gallon tank with one fill location.
Fewer Grease Points: With just four grease points that only need annual greasing, the Lazer Z delivers maximum performance with minimum maintenance. Greaseless spindles and only four grease points on the entire machine.
Rear Discharge Deck: Available in 60 and 72 inch cutting widths, the rear discharge deck offers increased clipping discharge control, reduced noise, and the ability to trim on both sides of the cutting deck while keeping the operator clean.
Ultracut Series 4 Deck: This full-floating deck uses maintenance free spindle with a splined blade driver to stop bolt tightening on impacts. And, our patented bearing design on idler arm pivots only needs annual service.
Tool-less Belt Removal: Deck and hydro belt can be installed without using any tools.

Equipment

Blade Spindles: No maintenance, sealed and non-greasable spindles; 7.75 in.-diameter cutter housing with 25mm (.98 in.) diameter spindle shaft and splined blade driver.
Drive Tires: 24 x 12-12, 4 ply Super Turf®
Tractor Frame: Unibody, welded, heavy-duty 1.5 in. x 3 in. tubular steel.
Steering Control: Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
Front Caster Tires: 13 x 6.50-6, smooth-tread, semi-pneumatic.
Parking Brake: Lever-actuated disc brake.
Seat: Deluxe, bolstered suspension seat with Elastomeric Vibration Control material. Adjustment: Fore and aft from Operators' Position.
Electrical: 12-volt battery with 15-amp alternator.
Standard Features: Engine hour meter and cup holder

Power Components

Engine Brand: Kawasaki
Engine Model: FX801V
Engine Displacement: 852
Engine Series: V-Twin
Engine Speed: 3,750 RPM
Air Filter: Heavy-duty canister air filtration system
Fuel Type: Gas Carbureted
Fuel Capacity: 8-gallon (30.3-L) single fuel tank with single fill location.
Fuel Indicator: Yes - electronic Sender
Drive: Hydro-Drive
Drive Description: Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, shock valve, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 12 cc pumps and 14. 5 cubic inch motors.
Engine HP: 25.5 hp
Speed: Infinitely variable speed selection from 0-10.0 mph (16 kmph) forward, 0-6.0 mph (9.7 kmph) reverse.
Carb Compliant: No
Deck Lift: Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Safety Package: Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS: 2-post foldable ROPS standard with seat belt and latch.
PTO Engagement: MagStop electromagnetic 200-ft-lb clutch with spot brake
Drive Wheel Release: Allows unit movement without engine running.
Casters: .50 in. thick caster yoke arms.
Engine Spec: _S07

Decks

Width / Cutting Deck: 72 in.
Deck Style: Floating Deck
Deck Style Description: Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Deck Construction: 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.
Blade Tip Speed: Approximately 18,500 fpm.
Cutting Heights: 1.0 in. (2.5 cm) to 5.5 in. (11.8 cm) in 0.25 in. (0.64 cm) increments adjustable from operator's seat.
Blades: 3 Blades at 24.50 in. Length

Dimensions

Width: 84.9 in. (215.6 cm)
Length: 86.1 in. (218.7 cm)
Height: 70.5 in. (179.1 cm)
Curb Weight: 1244

Lazer Z E-Series Accessories

Hitch Kit: Enables owners to add attachments to their mowers to increase productivity by towing light implements and yard carts.
Light Kit (not compatible with TC26): Light Kit
Operator Controlled Discharge (Foot): The infinitely adjustable blocker door opens and closes by using the convenient foot pedal, allowing the operator to quickly control discharge when mowing around parked cars and windows. Easily installs and removes without tools.
Micro-Mulch System: The aerodynamically designed deck, baffles and special mulching blades create airflow patterns that circulate leaves and grass for repeated cuttings and even dispersal deep into the turf. The simple bolt-in mulching baffles create independent mulching chambers which reduces the transfer of material from one mulching blade to another thereby improving the distribution of mulched clippings or leaves.
12-Volt Power Adapter: Conveniently located for ease of use. Great for phone chargers or any other operator comfort accessory. (Phone not included.)
Extended Drive Lever Kit: Improve your elbow room while you operate with extended drive levers.
Hydro Maintenance Kit: Kit includes: 1 gallon jug of Exmark® Premium Hydraulic Oil and 2 Hydro Filters (Replaces 116-3270)
Harness Add-On Accessory Kit: Take the hassle out of dual accessory fit up with this add-on harness.
Trash Container (Not compatible with 135-7320): Conveniently located within easy reach of the operator, this trash container features a 2.5-gallon capacity and durable, easy-to-clean mesh receptacle. See dealer for fit- up information.
Jack Mount Receiver: Safely access the underside of your zero-turn mower's deck. Used with Exmark's Bulldog jack (p/n 127-6666 sold separately) attaches for smooth lift without hassle or strain, thanks to its comfortable, ergonomic design. Built for years of reliability.
Jack: Easy to use, 15" stroke Bulldog jack, gives you plenty of room to change blades or perform routine deck cleaning (jack mount receiver not included).
Sun Shade (ROPS): Easily mounts to Rollover Protection System (ROPS). Made of heavy-duty, water- repellent canvas for maximum durability. Easily removable for transport. Fits all Lazer Z and Pioneer models. (Does not fit Quest.) (Replaces 116-0513)
Floor Mat: Keep your Lazer looking its best by protecting the floorpan from scuffs and dirt. Fits all Lazer models (model year 2009 and higher).
Power Deck Lift: Change your deck from any cutting height to the transport position quickly and easily, with a convenient foot pedal actuator switch that lets you keep your hands safely on the drive levers. Created specifically for your 48-72" cutting deck Lazer Z, its electronic motor features Exmark's signature durability and a low-profile design that leaves plenty of trailer space.
Air Ride Suspension Seat: Designed to fit all Lazer Z models, the new air ride seat gives you the best comfort available. Sophisticated air suspension technology virtually eliminates any bumps, jarring or vibration your property delivers.
Tractus Tire: Tractus Tire
Seat Isolation System: Reduces operator fatigue with a 3-dimensional, motion-isolated layout. Its rubber mounts allow 0.5-inch free movement in all directions, resulting in 12-hour days that feel more like 6. Fits Lazer E-Series models.
UltraVac Completing Kit: KIT, UV DRIVE 724 SPLINED 920,000
Turf Striping Kit: Fits 72" models. Customize your property with consistent and professional striping using a smooth operating roller design. Installs quickly, using existing mounting points, and easily adjusts for varying cutting height settings. Does not affect your ability to get up and over curbs.
UltraVac Quick Dump Collection System: The UltraVac X-Series discharges grass quickly with one simple motion of the release lever. With commercial-grade steel and polyethylene hopper Get the job done efficiently with rear-discharge door, and 11 bushel capacity.
UltraVac 3-Bag Collection System: The UltraVac S-Series enables you to switch between bagging and side discharge with quick-attach capability. Avoid clogging with larger diameter tubes. Compact design minimizes trailer space for easy maneuverability. Sealed hood reduces dust.
